Light types: White (2700–6500K), blue, RGB, RGB+W, RGBWW, CCT
- Powers: 5–12 W/meter
- Cable outputs: front, rear, side
- Control: standard switches, remote controls, home automation systems (DALI, DMX, PWM…), smartphone and tablet apps.
Professional LED solutions for underwater lighting
TIL FLEX WATER IP68
STRIP TIL FLEX WATER is a LED STRIP designed for use in immersion and, thanks to a combination of special Resins and Components, guarantees an IP68 protection rating and, for specific uses, also IP69K. Its technology allows the LEDs and ELECTRONICS to be and remain submerged in water without any problem.

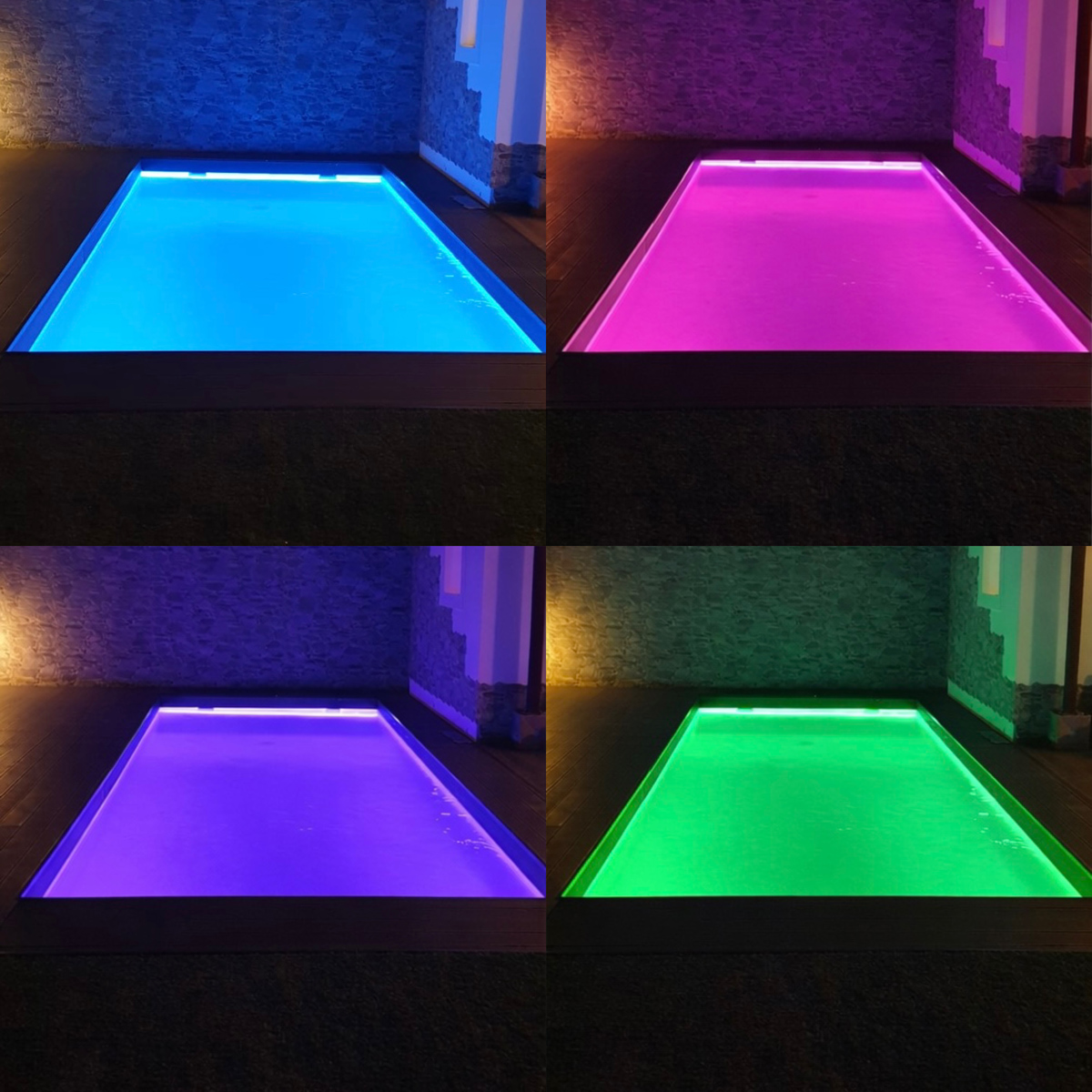

Ideal for swimming pools, and in general for all underwater applications, it can be positioned both inside the pool and flush and/or around the perimeter, even externally, very useful as a safety signal to outline pool edges and prevent accidental falls (already mandatory in several countries such as the USA).
The special protection of the Strip also does not react with salt, chlorine and/or other substances contained in pool water and, consequently, does not suffer damage or deterioration over time.
The professional LED strip for water-exposed environments
TIL FLEX WATER IP68-69K
TIL FLEX WATER is a professional flexible LED strip, encapsulated in polyurethane resin certified IP68/IP69K, ideal for direct immersion and use in high-humidity environments.
Compatible with home automation systems, available in various shades and powers, it is a lighting solution designed to offer uniformity, durability, and reliability in humid and special environments.
With easy installation, it can be positioned both inside the pool and flush and/or around the perimeter, even externally.
The revolution of underwater lighting
Available models
Invisible technology, guaranteed scenic effect. The light integrates into the water, without boundaries.
Each model of the TIL FLEX WATER line is designed to meet specific installation needs, with different light emission and dimensions:
- STD-FLEX: 15.5 x 7 mm - Light emission vertical to the bending side
MD-FLEX WATER 14 x 6.5 mm - Light emission vertical to the bending side
- X-FLEX WATER 16x16 mm – Uniform light emission and vertical output relative to the bending side.
SDX-FLEX WATER 16 x 16 mm - Light emission horizontal relative to the bending side
- S-FLEX WATER 10x20 mm – Uniform light emission and lateral output relative to the bending side.
- MINI-FLEX WATER 10x10 mm – Uniform light emission and vertical output relative to the bending side.
ALL FLEX WATER STRIP MODELS CAN BE MADE TO MEASURE AND 100% CUSTOM. All TIL FLEX WATER strips operate at low voltage (24V, in special cases also 12V, 36V, 48V).
Technical features and installation of TIL FLEX WATER LED strips
Specifications and Installation
Technical configurations
Installation
TIL FLEX WATER LED strips can be installed:
- Inside, under the edge, or outside swimming pools
- On all surfaces: concrete, ceramic, marble, liner, metal, and many others
Mounting
- With stainless steel back box (for recessed installations)
- With special immersion adhesives (for quick applications)
The flexibility of the body and compatibility with different materials allow perfect aesthetic integration even in complex or curved spaces.
Maintenance
No maintenance required.
Thanks to the protective resin and sealed electronics, the LED strips can reach 50,000–60,000 hours of continuous operation, even in extreme environments.
